Heavy Duty Single Mass Clutch Kit suit Mitsubishi MQ MR Triton 2.4ltr 4N15 2015-2023

$1,750.00


or 4 payments of $437.50 with Learn more

In Stock

Make 4 payments of $437.50 over 8 weeks and get it now!



Calculate Shipping

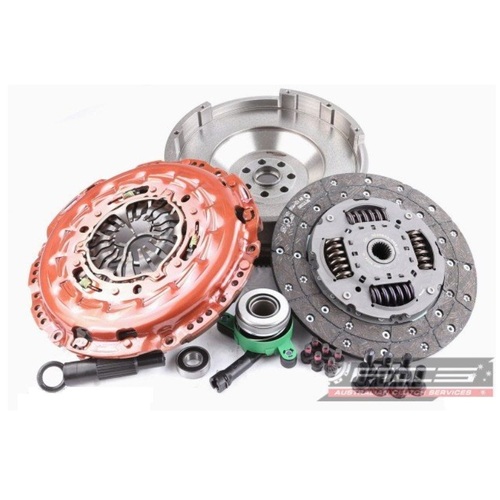

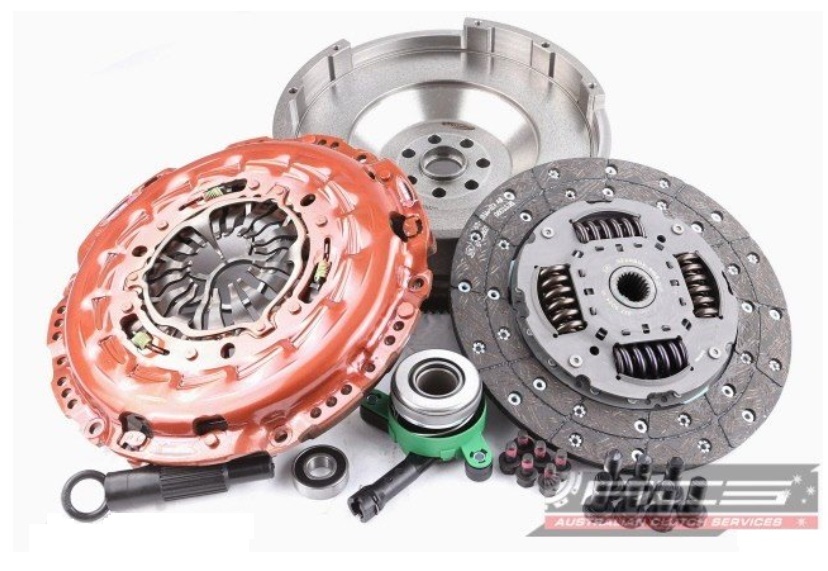

Xtreme Outback heavy duty single mass clutch kit conversion to suit 05/2015 - 12/2023 Mitsubishi MQ MR Triton 2.4ltr 4N15 Turbo Diesel models

Item:
Xtreme Outback Heavy Duty Clutch Kit

Single Mass Conversion complete with solid flywheel

Suit 2.4ltr 4N15 Turbo Diesel engines



Suit:
05/2015 - 12/2023 Mitsubishi MQ MR Triton 2.4ltr 4N15 Turbo Diesel models

Condition:
New - to be fitted by a professional

Shipping:
Once payment has been made, we aim to ship your order the next business day, however dispatch times can take up to 3 business days. The usual delivery time once your order has been dispatched is around 2-5 business days to most metro areas, but can take up to 14 business days for rural areas, please be aware that the ebay delivery time calculator is very inaccurate and for a more accurate estimate you are best to check the auspost website. Most of our items are sent using Australia Post eParcel and Australia Post express eParcel and all items are sent with tracking numbers and signature on delivery (unless otherwise stated). We also use couriers such as Startrack, Couriers Please, Fastways & TNT for larger, bulkier items.

Pick Up:
Pick up from our store is more than welcome, but please call first to make sure we have in stock

Returns:
- Returns accepted within 30 days of purchase as long as item is still in original box and in new original condition.
- Auto Parts Supply do not cover any return postage
- Refund will be given minus the cost of our original postage + 15% restocking charge

Warranty:
Manufacturers conditional warranty - see warranty section for details

(KMI28690-1A-52550)

Flywheel Step (mm) -31.25mm
Clutch Disc Diameter 273mm
Clutch Disc Spline Count 23mm
Clutch Disc Spline Diameter 26mm
Disc Type Sprung
Friction Material Organic
Stage 1
Recommended Use Street / Offroad / Towing
Clamping Force % Increase 30%
Torque (Nm) Inc FOS 830
Torque (ftlbs) Inc FOS 610
Spigot Bush/Bearing Included Yes
Aligning Tool Included Yes
Flywheel Included Single Mass-Ductile Iron
Flywheel Bolts Included Yes
Concentric Slave Cylinder Included Yes
Pressure Plate Bolts Included Yes
Spline Grease Included Yes



SKU KMI28690-1A-52550
Brand Xtreme Outback
Shipping Weight 41.5000kg
Shipping Width 0.400m
Shipping Height 0.250m
Shipping Length 0.400m
Shipping Cubic 0.040000000m3
Type Clutch Kits

Warranty Terms & Conditions

Australian Clutch Services goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Australian Clutch and Components are guaranteed to be free from defects in materials or manufacture from date of fitment, as detailed below:

Passenger and Light Commercial Vehicles
ClutchPro Passenger, Light Commercial, Xtreme and Xtreme Outback:
2 Year warranty on all passenger car and light commercial clutch kits
12 Months from date of fitment or 20,000 km’s, whichever occurs first. (parts & labour, refer to point 4)
13-24 Months from date of fitment or 40,000 km’s, whichever occurs first. (parts only)

Medium to Heavy Commercial Applications
ClutchPro Commercial:

12 Months from date of fitment or 40,000 km’s, whichever occurs first. (parts & labour, refer to point 4)

Agricultural Applications
12 Months from date of fitment or 1000 hours, whichever occurs first. (parts & labour, refer to point 4)

Hydraulics
12 Months from date of fitment or 20,000km, whichever occurs first.
Note: Hydraulics supplied as part of a clutch kit are covered by associated warranties for the application (refer above).

Individual Clutch Components/Electronic Clutch Actuators
12 Months from date of fitment or 20,000km, whichever occurs first.

Tools
12 Months from date of purchase


Australian Clutch Services reserves the right to inspect products in question to determine if such product has failed because of a defect in workmanship or materials.
This limited warranty does not cover the following:
1. Prior to new clutch kit being fitted, the flywheel must be machined otherwise warranty will be void.
2. Warranty claims will not be issued until the said goods have been tested and deemed faulty by the Seller.
3. The Seller will not pay any claim for goods repaired by the Buyer.
4. In respect of warranty repairs, the repairer has a duty to minimise losses in respect of rework and replacement of parts so any claims against the seller for labour, will be reimbursed on an internal labour cost basis up to a maximum of $66.00 inc GST per hour for specified times. Labour claims must be included with original warranty submission.
5. Claims will be rejected where clutch kits or components have been fitted to incorrect or unlisted applications.
6. Warranty does not apply when the goods sold are fitted to a vehicle used for speed trials, racing, time trials, commercial and off-road vehicles unless fitted as original equipment.
7. All goods supplied by the seller are warranted against faulty material and/or workmanship but not maltreatment and damage caused by collision or driver abuse.
8. Products which have been altered, improperly installed, maintained, repaired, or damaged by accident, negligence, or misuse, or products damaged by excessive heat caused by slipping, also clutch discs with damaged splines, broken or missing dampener springs, clutch discs and or release bearings that have been fitted backwards.
9. Australian Clutch Services kits returned without all original products, warranty claim form and the original Tax Invoice.
10.  Australian Clutch Services kits returned without proof of flywheel replacement/resurface.
11.  Cover assemblies with bent or broken drive straps.
12.  Cover assemblies installed using air impact tools.
13.  Cover or disc assemblies with oil contamination, grease contamination, or rust.

Australian Clutch Services does not accept the following failures as warranty claims in terms of the Australian Clutch Services warranty if they are caused by incorrect fitment, incorrect driving or vehicle defects:

13.1. Driven Plates

• Damaged Hub Splines
• Severely worn or broken torsion damper springs
• Burnt-out or broken facings
• Oil or grease contaminated facings



13.2. Cover Assembly
• Severely worn or broken diaphragm fingers
• Burnt-out pressure plate
• Bent or broken drive straps



13.3. Release Bearings
• Severely worn or broken bearing



13.4. Concentric Slave Cylinders (CSC’s)
• Damaged seals due to fluid contamination
• Damaged seals due to cylinder overstroke



13.5. Flywheels
• Flywheels exposed to thermal overload



The Australian Clutch Services Warranty is only valid in respect of clutches fitted to vehicle applications which are specifically listed in the current Australian Clutch Services catalogue. The warranty is immediately invalidated where clutches are fitted to vehicle applications not listed in the catalogue, and no warranty claim will be considered by Australian Clutch Services in respect of such clutches.
All warranty claims must be submitted to the authorised distributor from which the product was purchased. All paperwork must be presented at the time of the claim (additional paperwork submitted after the claim has been finalized will not be considered). All claims must be presented within 10 days of the discovery of defects within the warranty period. Australian Clutch Services is not responsible for return shipping charges.
Australian Clutch Services can be contacted for technical assistance, installation advice and technical bulletins.

How to claim a Warranty
In the event of a problem with an Australian Clutch Services clutch, the following procedure should be followed:
1. Take your vehicle back to installation point or workshop where your Australian Clutch Services clutch was fitted. It is the distributor’s responsibility to complete the Warranty Claim form and liaise with Australian Clutch Services (Australian Clutch Services P/L).
2. Make sure that the clutch has been correctly fitted according to the Australian Clutch Services fitment guidelines, as well as the instructions in the workshop repair manual for the vehicle.
3. Check the vehicle thoroughly before removing the clutch in order to ensure that the clutch problem has not resulted from the vehicles faults such as a defective or incorrectly adjusted clutch release mechanism, work driveline mountings or oil leaks.
4. Return all the clutch parts to your place of purchase together with a completed Warranty Claim form and a copy of the invoice on which the clutch was purchased.
5. Australian Clutch Services will inspect the clutch parts and provide a detailed technical report to the original purchaser of the goods (distributor/ installer / workshop) if required.
