Thor Air Bag Load Assist Suspension Kit For Toyota Hilux 1988-1997 2wd



1988 - 1997 Toyota Hilux 2wd models





These load assist products give leaf sprung & some coil sprung vehicles an air adjustable rear suspension, they simply bolt on and when filled with air, raises the rear end (when under load) to make the vehicle level again.

This makes the vehicle safer when loaded by keeping the front wheels in contact with the road, eliminating sway and improving cornering (wet or dry).

These Load helper kits are perfect for vehicles that carry loads constantly or intermittently.  You can adjust your air pressure to suit your load whether it be carring tool boxes or towing a caravan or trailer.  Ask us about our in-cab inflation kits so you can adjust your pressure in your load assist kit in your cabin for safer load carrying/towing.

These Air Bellows:

Air adjustable 0 – 150 PSI
Heavy Duty construction
A must for constantly loaded 4WD and Utes
Easy to fit and easy to use
Rated to carry 1.2 tonne (1200 kg) per bellow
They fit between the axle and the chassis and are easy to fit
Will decrease tyre wear

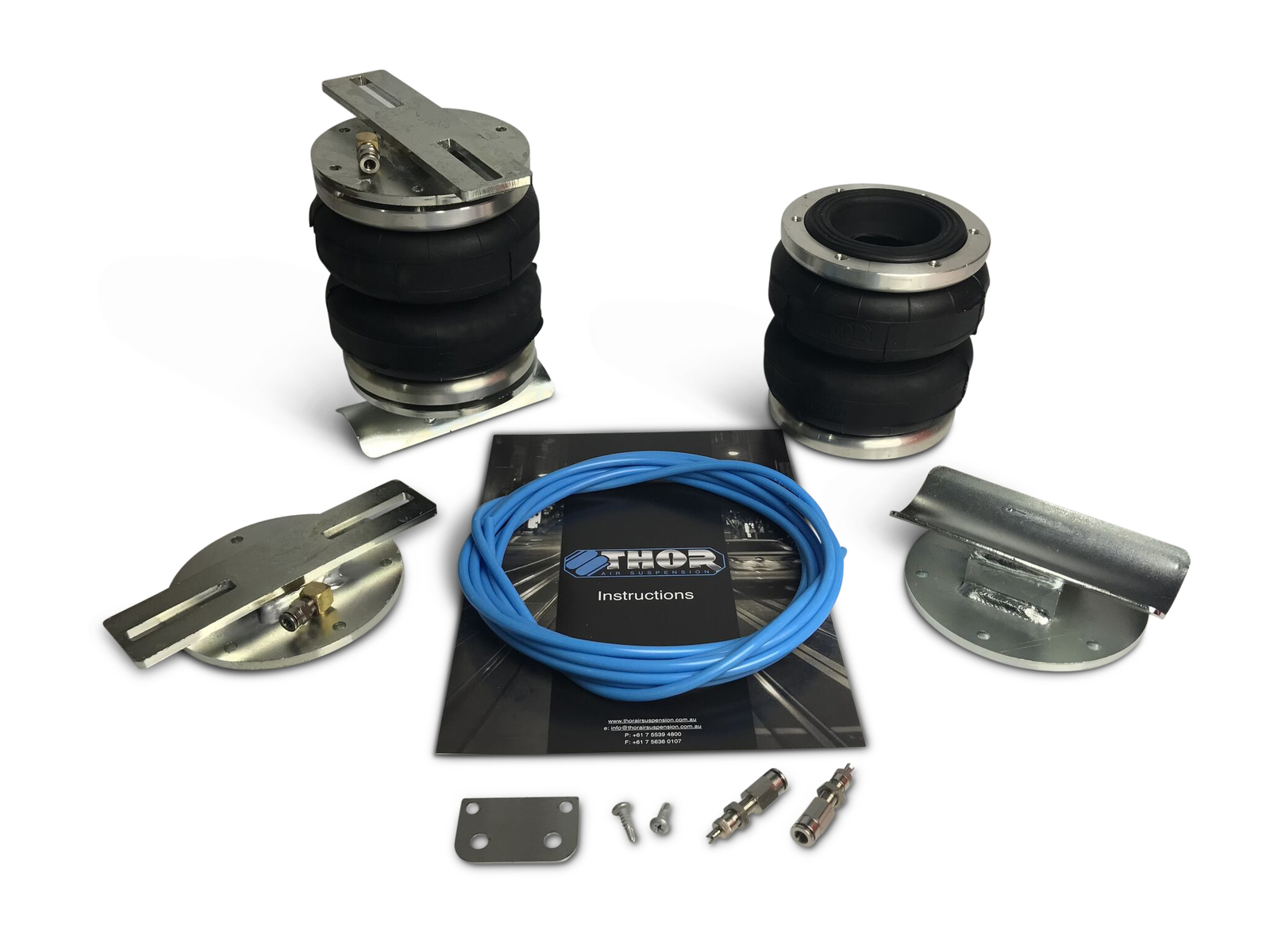

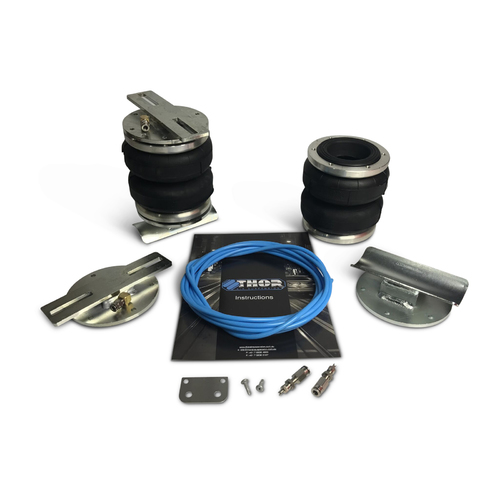

The Air Bags/Bellows Kit come with:

2x Airbag (Double Bellows)
Australian Made Brackets for mounting top and bottom
Australian Made Airlines
Push connect valves and fittings
Fitting instructions
5 Year manufacturer's warranty



These kits include separate air lines for each side with valves for ease of inflation/deflation. They are tested to ADR standards. Thor Air Bellows are rated to 2.2 tonnes which is well in excess of that required by manufacturers /authorities. Proven in the tough Australian Outback by Farmers, 4WD tour operators and 4WD enthusiasts, as well as the Agricultural, Mining and Film & Television Industries, these kits have a wide variety of uses, the limit is your imagination.



Detailed Product Information

Australian Made Heavy Duty Engineered Brackets

These brackets are Laser Cut, from 5mm Australian Steel, not stamped, each bracket is Mig welded and are either zinc plated in a silver finish to ensure long lasting rust protection or black powder coating for superior durability. Our brackets have been tested by a Government Accredited Certifier to 51kn, that's just over 5.11 tonne! Our brackets don’t bend or break like other brands. Quality Australian Made Airlines and fittings.Our  airline is made in Australia and fittings supplied from Australian Owned Companies to help keep the dollar in Australia and support local business



Top Quality Double Convolute Rubber Bellows

These are imported / not made in Australia, (as we don't have the technology available here). These double convoluted bellows feature heavy duty 5mm thick corded/ribbed rubber similar to the sidewall of a car or 4WD tyre, which have a travel rate of 5.5 inches. This gives a better ride than sleeve bags by having more flex and travel. Our bellows have been tested by an accredited Government Certifier, and have been tested to 464psi without bursting.



These kits are ideal for leaf spring applications on:

Motorhomes
5th wheelers
Farm trucks
Trailers
Farm machinery



It is ideal when towing:

Horse floats
5th wheelers
Large trailers
Caravans
Slide on campers, etc.
